INTERMOLECULAR BONDING - VAN DER WAALS FORCES

This page explains the origin of the two weaker forms of intermolecular attractions - van der Waals dispersion forces and dipole-dipole attractions. If you are also interested in hydrogen bonding there is a link at the bottom of the page.

What are intermolecular attractions?

Intermolecular versus intramolecular bonds

Intermolecular attractions are attractions between one molecule and a neighbouring molecule. The forces of attraction which hold an individual molecule together (for example, the covalent bonds) are known as intramolecular attractions. These two words are so confusingly similar that it is safer to abandon one of them and never use it. The term "intramolecular" won't be used again on this site.

All molecules experience intermolecular attractions, although in some cases those attractions are very weak. Even in a gas like hydrogen, H₂, if you slow the molecules down by cooling the gas, the attractions are large enough for the molecules to stick together eventually to form a liquid and then a solid.

van der Waals forces: dispersion forces

Dispersion forces (one of the two types of van der Waals force we are dealing with on this page) are also known as "London forces" (named after Fritz London who first suggested how they might arise).

The origin of van der Waals dispersion forces

Temporary fluctuating dipoles

Attractions are electrical in nature. In a symmetrical molecule like hydrogen, however, there doesn't seem to be any electrical distortion to produce positive or negative parts. But that's only true on average.

The lozenge-shaped diagram represents a small symmetrical molecule - H₂, perhaps, or Br₂. The even shading shows that on average there is no electrical distortion.

But the electrons are mobile, and at any one instant they might find themselves towards one end of the molecule, making that end -. The other end will be temporarily short of electrons and so becomes +.

An instant later the electrons may well have moved up to the other end, reversing the polarity of the molecule.

This constant "sloshing around" of the electrons in the molecule causes rapidly fluctuating dipoles even in the most symmetrical molecule. It even happens in noble gases, like helium, which consist of a single uncombined atoms.

If both the helium electrons happen to be on one side of the atom at the same time, the nucleus is no longer properly covered by electrons for that instant.

How temporary dipoles give rise to intermolecular attractions

I'm going to use the same lozenge-shaped diagram now to represent any molecule which could, in fact, be a much more complicated shape. Shape does matter (see below), but keeping the shape simple makes it a lot easier to both draw the diagrams and understand what is going on.

Imagine a molecule which has a temporary polarity being approached by one which happens to be entirely non-polar just at that moment. (A pretty unlikely event, but it makes the diagrams much easier to draw! In reality, one of the molecules is likely to have a greater polarity than the other at that time - and so will be the dominant one.)

As the right hand molecule approaches, its electrons will tend to be attracted by the slightly positive end of the left hand one.

This sets up an induced dipole in the approaching molecule, which is orientated in such a way that the + end of one is attracted to the - end of the other.

An instant later the electrons in the left hand molecule may well have moved up the other end. In doing so, they will repel the electrons in the right hand one.

The polarity of both molecules reverses, but you still have + attracting -. As long as the molecules stay close to each other the polarities will continue to fluctuate in synchronisation so that the attraction is always maintained.

There is no reason why this has to be restricted to two molecules. As long as the molecules are close together this synchronised movement of the electrons can occur over huge numbers of molecules.

This diagram shows how a whole lattice of molecules could be held together in a solid using van der Waals dispersion forces. An instant later, of course, you would have to draw a quite different arrangement of the distribution of the electrons as they shifted around - but always in synchronisation.

The strength of dispersion forces

Dispersion forces between molecules are much weaker than the covalent bonds within molecules. It isn't possible to give any exact value, because the size of the attraction varies considerably with the size of the molecule and its shape.

How molecular size affects the strength of the dispersion forces

The boiling points of the noble gases are

All of these elements exist as single atoms.

The reason that the boiling points increase as you go down the group is that the number of electrons increases, and so also does the radius of the atom. The more electrons you have, and the more distance over which they can move, the bigger the possible temporary dipoles and therefore the bigger the dispersion forces.

Because of the greater temporary dipoles, xenon atoms are "stickier" than neon atoms. Neon atoms will break away from each other at much lower temperatures than xenon atoms - hence neon has the lower boiling point.

This is the reason that (all other things being equal) bigger molecules have higher boiling points than small ones. Bigger molecules have more electrons and more distance over which temporary dipoles can develop - and so the bigger molecules are "stickier".

How molecular shape affects the strength of the dispersion forces

The shapes of the molecules also matter. Long thin molecules can develop bigger temporary dipoles due to electron movement than short fat ones containing the same numbers of electrons.

Long thin molecules can also lie closer together - these attractions are at their most effective if the molecules are really close.

For example, the hydrocarbon molecules butane and 2-methylpropane both have a molecular formula C₄H₁₀, but the atoms are arranged differently. In butane the carbon atoms are arranged in a single chain, but 2-methylpropane is a shorter chain with a branch.

Butane has a higher boiling point because the dispersion forces are greater. The molecules are longer (and so set up bigger temporary dipoles) and can lie closer together than the shorter, fatter 2-methylpropane molecules.

van der Waals forces: dipole-dipole interactions

All intermolecular attractions are known collectively as van der Waals forces. The various different types were first explained by different people at different times. Dispersion forces, for example, were described by London in 1930; dipole-dipole interactions by Keesom in 1912.

This oddity in the syllabuses doesn't matter in the least as far as understanding is concerned - but you obviously must know what your particular examiners mean by the terms they use in the questions. Check your syllabus.

A molecule like HCl has a permanent dipole because chlorine is more electronegative than hydrogen. These permanent, in-built dipoles will cause the molecules to attract each other rather more than they otherwise would if they had to rely only on dispersion forces.

It's important to realise that all molecules experience dispersion forces. Dipole-dipole interactions are not an alternative to dispersion forces - they occur in addition to them. Molecules which have permanent dipoles will therefore have boiling points rather higher than molecules which only have temporary fluctuating dipoles.

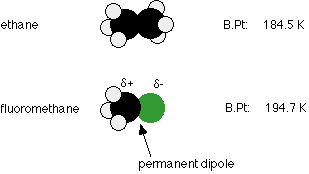

Surprisingly dipole-dipole attractions are fairly minor compared with dispersion forces, and their effect can only really be seen if you compare two molecules with the same number of electrons and the same size. For example, the boiling points of ethane, CH₃CH₃, and fluoromethane, CH₃F, are

Why choose these two molecules to compare? Both have identical numbers of electrons, and if you made models you would find that the sizes were similar - as you can see in the diagrams. That means that the dispersion forces in both molecules should be much the same.

The higher boiling point of fluoromethane is due to the large permanent dipole on the molecule because of the high electronegativity of fluorine. However, even given the large permanent polarity of the molecule, the boiling point has only been increased by some 10°.
